Sketching around the wheel
As many designers will tell you, prototyping is half of the fun of designing. Depending on what a designer's creating, the prototype process can be quite easy and straightforward or completely INSANE. I think the Guilin Bike Stand was closer to the former, but that's also because I had a lot of help from the great guys behind TiGr lock, who first gave me the idea to use 1/4"-diameter copper tubing for prototyping (I mentioned this in Update #6).
The great thing about copper is that it's bendable by hand and yet it retains its shape without being too wobbly. Of course, if you bend it too many times, then it starts to lose strength and you'll get a very crooked tube that you can't fix (like trying to unbend folded paper--it's never as smooth as the original).

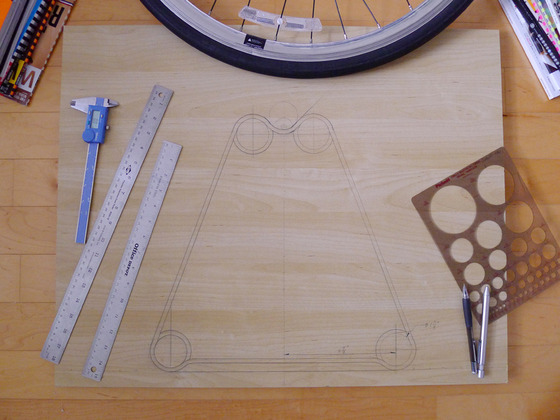

After I took some general measurements of the front fork spacing and the diameter of the wheel, I got a large piece of wooden board to use as a platform and removed my bike's front wheel to lay out a pseudo-engineering sketch [PIC 1]. Although I was just trying to get a "feel" for what the stand is going to look like in size and shape, I still wanted to make sure I was in the general ballpark in dimensions. I also thought it'd be fun to draw on a wooden board--mainly because I was never allowed to draw on anything besides paper when I was a child.

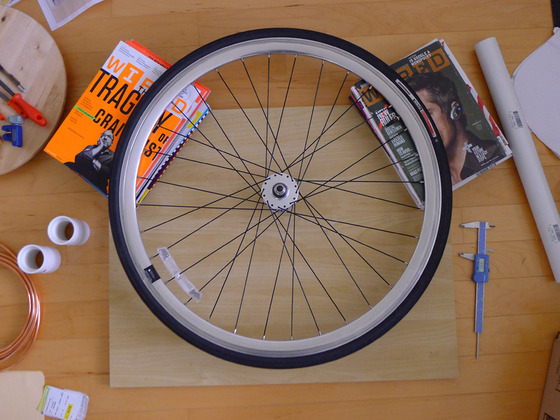

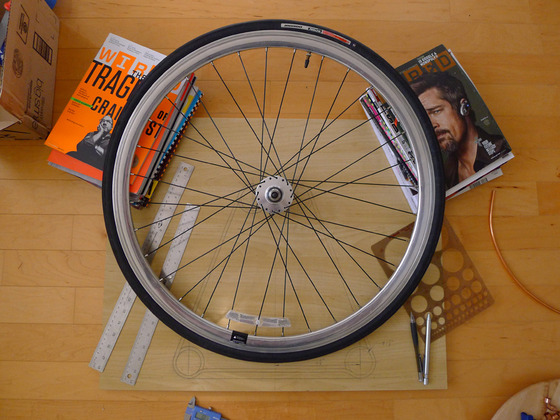

I put the wheel on top of the board and propped it up with two stacks of magazines to make it level [PIC2]. (Yes, that's the world-famous Brad Pitt's face propping up my lowly wheel. Sorry, Brad.) Once the wheel was nice and centered, I started sketching a skeleton of the frame around it. By the way, I like doing this type of sketching because it gives me a real-world sense of size, which is difficult to do with a scaled-down drawing. After many back-and-forth erasing and redrawing and moving the wheel out of the way and back again, I got to a very basic framework, which I will later start tracing with the copper tube [PIC 3].

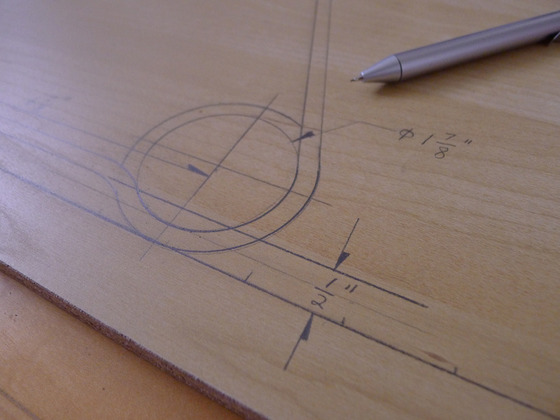

But before that, I went on a little spree taking my sweet time in drawing dimension arrows...perhaps some remnants of my engineering days [PIC 4]. It was very therapeutic.
More to come...
